Chapter 12 - Designing Multi-Agent Architectures

This article is part of my web book series. All of the chapters can be found here and the code is available on Github. For any issues around this book, contact me on LinkedIn

Up to this point, our focus has been primarily on building and empowering individual LlmAgent instances. While single, highly capable agents can achieve a lot, many complex real-world problems benefit from a Multi-Agent System (MAS) approach. A MAS involves multiple autonomous agents interacting with each other, or an orchestrator, to achieve a common goal or solve a problem that might be too large or diverse for a single agent.

ADK is designed with multi-agent systems in mind, providing mechanisms for agents to delegate tasks and coordinate their efforts. This chapter explores the principles of designing such systems, how ADK facilitates agent communication through transfers, and common architectural patterns.

Principles of Multi-Agent Systems

Why use multiple agents instead of one super-agent?

• Modularity and Specialization: Each agent can be designed to be an expert in a specific domain or task (e.g., a research agent, a data analysis agent, a user communication agent). This makes individual agents simpler to develop, test, and maintain.
• Scalability: Different agents can potentially run independently, allowing for better resource utilization and scalability.
• Robustness: If one specialized agent encounters an issue, other parts of the system might still be able to function or adapt.
• Complexity Management: Breaking down a large, complex problem into sub-problems that individual agents can tackle makes the overall system design more manageable.
• Reusability: Specialized agents can be reused across different multi-agent applications.

Key Design Considerations for MAS:

• Agent Roles and Responsibilities: Clearly define what each agent is responsible for.
• Communication Protocol: How will agents exchange information and delegate tasks? In ADK, this is primarily through “agent transfer.”
• Coordination Strategy: How will the overall workflow be managed? Will there be a central orchestrator, a pipeline, or a more decentralized approach?
• Knowledge Sharing: How will agents share context or results? (e.g., via session state, artifacts, or direct message passing if applicable).
• Conflict Resolution: (More advanced) If agents have conflicting goals or information, how are these resolved?

Defining Parent Agents and Sub-Agents in ADK

ADK implements hierarchical multi-agent systems by allowing an LlmAgent to have sub_agents.

from google.adk.agents import Agent # LlmAgent

# Define specialized sub-agents
research_sub_agent = Agent(
    name="researcher",
    model="gemini-2.0-flash",
    instruction="You are a research specialist. Given a topic, find relevant information using available search tools.",
    description="Finds information on a given topic.",
    # tools=[google_search]
)

writer_sub_agent = Agent(
    name="writer",
    model="gemini-2.0-flash",
    instruction="You are a skilled writer. Given information, synthesize it into a coherent summary or report.",
    description="Writes summaries or reports based on provided information."
)

# Define the parent/orchestrator agent
report_orchestrator_agent = Agent(
    name="report_orchestrator",
    model="gemini-2.5-flash-preview-05-20", # A more capable model for orchestration
    instruction="You are an orchestrator for creating research reports. "
                "First, use the 'researcher' agent to gather information on the user's topic. "
                "Then, pass the researcher's findings to the 'writer' agent to create a final report. "
                "Manage the flow and present the final report to the user.",
    description="Orchestrates research and writing of reports.",
    sub_agents=[research_sub_agent, writer_sub_agent] # Key: Assigning sub-agents
)

# The root_agent for the runner would be report_orchestrator_agent
# from google.adk.runners import InMemoryRunner
# if __name__ == "__main__":
#     runner = InMemoryRunner(agent=report_orchestrator_agent, app_name="ReportMAS")
    # ... runner logic ...

Key Points:

• An LlmAgent can be assigned a list of other BaseAgent (including LlmAgent) instances to its sub_agents parameter.
• This creates a parent-child relationship. report_orchestrator_agent is the parent of research_sub_agent and writer_sub_agent.
• The parent agent can then be instructed to delegate tasks to its sub-agents.
• Each sub-agent can have its own model, instructions, tools, and even its own sub-agents, allowing for nested hierarchies.

Description is Key for Delegation

When a parent agent (or its LLM) decides whether to delegate a task to a sub-agent, it heavily relies on the description of the sub-agents. Write clear, concise, and accurate descriptions that highlight each sub-agent’s unique capabilities and when it should be invoked.

Agent Communication: The Role of Agent Transfer

In ADK, the primary mechanism for “communication” or delegation between LlmAgent instances in a hierarchy is Agent Transfer. This is not direct message passing in the traditional sense but rather a transfer of control.

The transfer_to_agent Tool:

• ADK provides an internal tool conceptually named transfer_to_agent.
• When an LlmAgent is configured with sub-agents (or can transfer to its parent), its LLM Flow (typically AutoFlow) makes this transfer_to_agent tool implicitly available to the LLM.
• The transfer_to_agent tool takes one main argument: agent_name (the name of the target agent).
• When the orchestrating LLM decides to delegate a task, it generates a function call to transfer_to_agent(agent_name="target_agent_name").

How AutoFlow Facilitates Transfers:

• The google.adk.flows.llm_flows.auto_flow.AutoFlow is automatically used by LlmAgents that are part of a potential transfer chain (e.g., they have sub-agents, or disallow_transfer_to_parent is False).
• AutoFlow includes an agent_transfer.request_processor. This processor:
  1. Identifies potential target agents (sub-agents, parent, peers based on agent config).
  2. Appends instructions to the LlmRequest informing the LLM about these available agents and their descriptions.
  3. Ensures the transfer_to_agent tool declaration is included in the LlmRequest.
• When the orchestrating LLM calls transfer_to_agent, the AutoFlow intercepts this:
  1. It yields an Event indicating the transfer request.
  2. The Runner then identifies the target agent.
  3. The Runner invokes the run_async method of the target agent, passing the current InvocationContext. The user’s original message (or a refined message from the orchestrator) becomes the input for the target agent.
  4. The conversation effectively continues with the target agent now active.

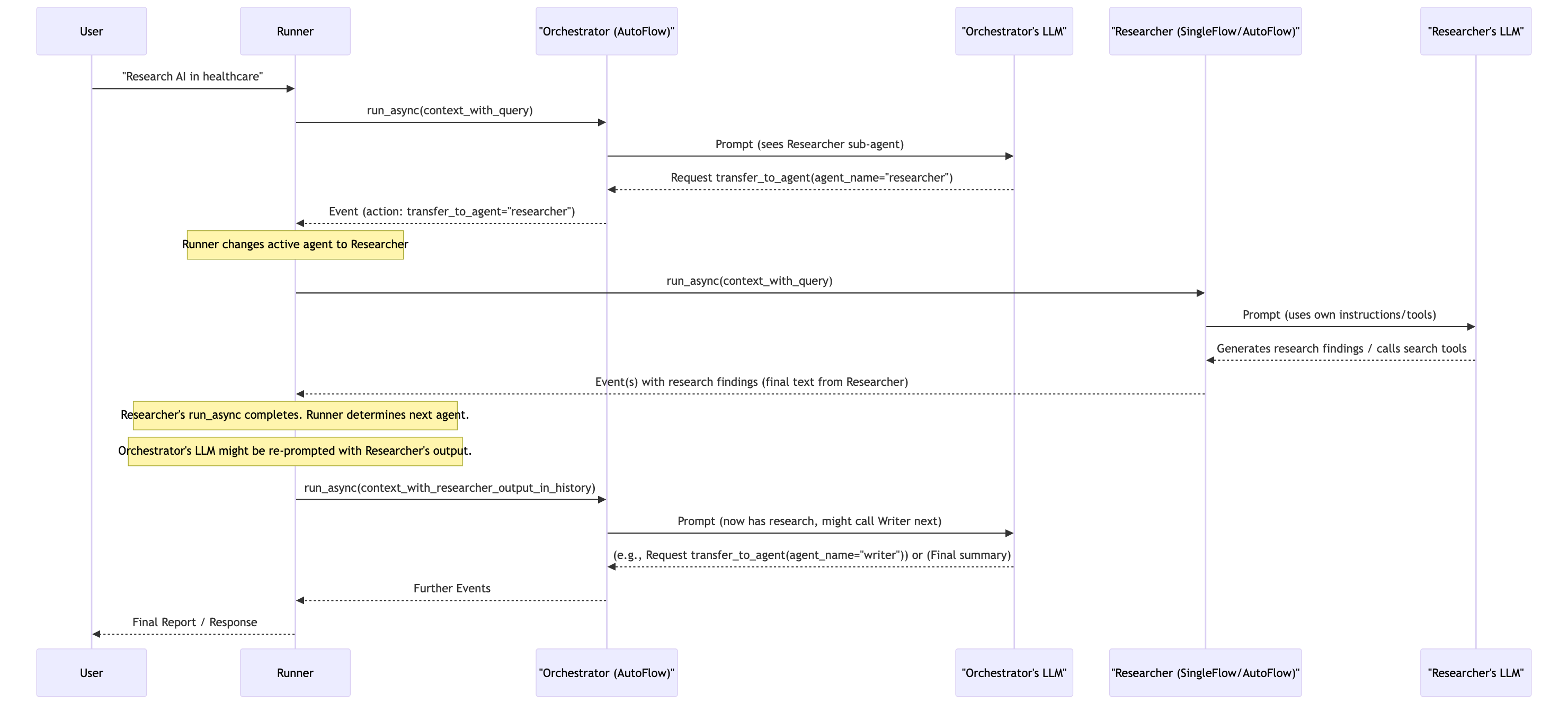

Example of LLM “Deciding” to Transfer (Conceptual LLM Output):

Imagine report_orchestrator_agent receives the prompt “Research the impact of AI on healthcare.” Its LLM might internally reason and then output a function call:

/* LLM output for report_orchestrator_agent */
I need to gather information first. The 'researcher' agent is best for this.
<tool_code>
transfer_to_agent(agent_name="researcher", user_query="Impact of AI on healthcare")
</tool_code>

(Note: The user_query or similar parameter to pass context during transfer is a conceptual addition that ADK handles by ensuring the InvocationContext carries the necessary user input forward.)

ADK processes this:

1. The report_orchestrator_agent’s turn effectively ends with this transfer request.
2. The Runner now invokes research_sub_agent.run_async(...) with the context (including the user query).
3. research_sub_agent now runs its own LLM Flow, uses its tools (e.g., search), and generates its response.

Returning from a Sub-Agent: How does control return to the parent/orchestrator?

• Implicitly via SingleFlow in Sub-Agent: If the sub-agent uses SingleFlow (i.e., it’s not designed to further delegate deeply), once it produces a final textual response, its run_async completes. The Runner, which was awaiting this, then typically looks for the next agent to run. If the previous active agent was an orchestrator that can continue, the Runner might reactivate it.
• Explicit Transfer Back: The sub-agent could also be instructed to call transfer_to_agent(agent_name="report_orchestrator") when its task is done.
• Orchestrator’s Plan: The orchestrator’s initial instructions might explicitly state the sequence: “1. Call researcher. 2. Then, I (orchestrator) will take the output and call writer.” In this case, after the researcher finishes, the orchestrator’s LLM is prompted again with the researcher’s output in the history.

Transfer Loops and Deadlocks

Poorly designed instructions or agent descriptions can lead to agents endlessly transferring tasks back and forth or getting stuck. Ensure:

• Each agent has a clear, distinct responsibility.
• Transfer conditions are well-defined in the orchestrator’s instructions.
• Sub-agents have a clear way to signal task completion (either by providing a final answer or by explicitly transferring back if designed to do so).
• ADK’s max_llm_calls in RunConfig can act as a failsafe against runaway loops.

Common Multi-Agent Patterns

ADK’s flexible agent definition and transfer mechanism support various common MAS patterns:

1. Hierarchical (Coordinator-Worker / Orchestrator-Specialist):

• Structure: A parent “coordinator” or “orchestrator” agent breaks down a complex task and delegates sub-tasks to specialized “worker” or “specialist” sub-agents.
• Example: The report_orchestrator_agent (coordinator) using research_sub_agent and writer_sub_agent (workers).
• ADK Implementation: Parent LlmAgent with sub_agents list. Parent’s instructions focus on delegation logic. Sub-agents focus on their specific tasks.

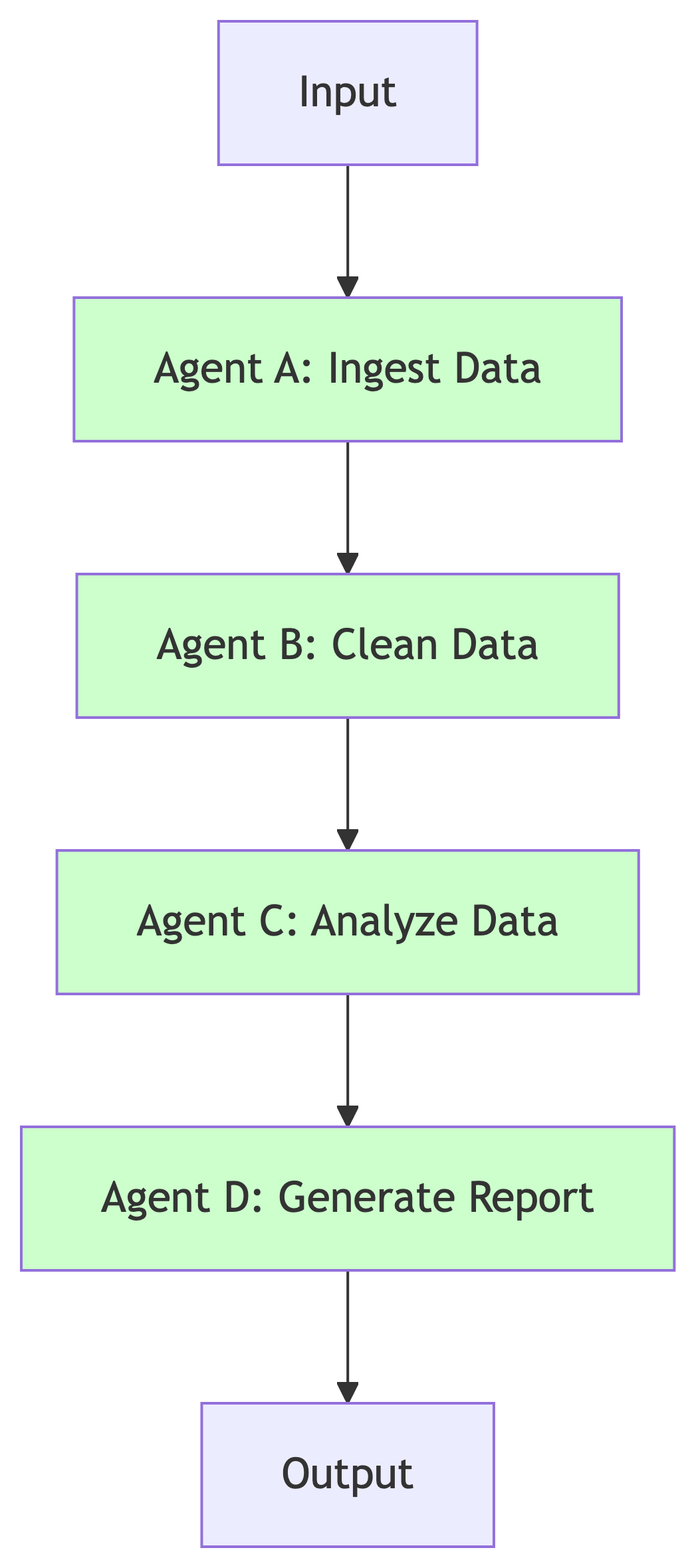

2. Sequential (Pipeline):

• Structure: Data or a task flows through a sequence of agents, each performing a specific transformation or step. The output of one agent becomes the input for the next.
• Example:
  1. DataIngestionAgent: Fetches raw data.
  2. DataCleaningAgent: Cleans and preprocesses the data.
  3. AnalysisAgent: Performs analysis on the cleaned data.
  4. ReportGenerationAgent: Formats the analysis into a report.
• ADK Implementation:
  • Can be implemented with a master orchestrator agent that calls sub-agents in sequence.
  • Alternatively, ADK provides google.adk.agents.SequentialAgent (a BaseAgent subclass, not an LlmAgent) which explicitly runs its sub_agents one after the other.

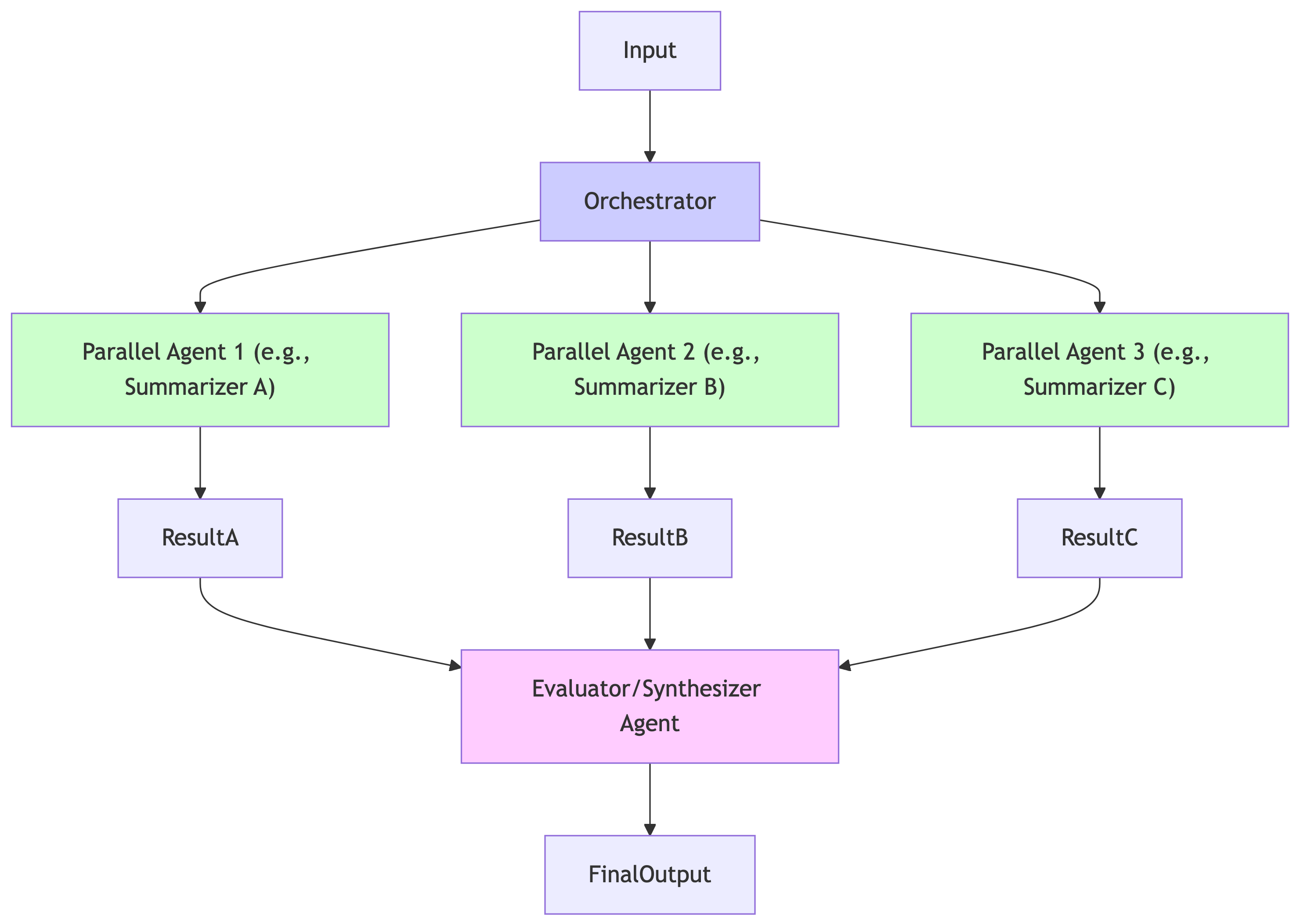

3. Parallel (Ensemble / Competing Experts):

• Structure: Multiple agents work on the same task or sub-problem concurrently. Their results might be:
  • Combined or synthesized by another agent.
  • Voted upon.
  • The “best” result selected based on some criteria.
• Example: Three different SummarizationAgents using slightly different instructions or models process the same document. An EvaluationAgent then picks the best summary.
• ADK Implementation:
  • An orchestrator can be programmed to invoke multiple sub-agents conceptually in parallel (though true parallelism depends on how asyncio schedules their run_async calls).
  • ADK provides google.adk.agents.ParallelAgent (a BaseAgent subclass) for explicitly running sub-agents in parallel and gathering their distinct outputs.

Best Practice: Start with Simple Patterns

When designing your first MAS, start with simpler patterns like a clear hierarchy or a short pipeline. As you gain experience, you can explore more complex coordination strategies. Clearly defining each agent’s API (its description and how it expects input/provides output) is crucial.

Case Study: Designing a Research Assistant MAS

Let’s outline the design for a multi-agent research assistant that takes a user’s topic, researches it, and produces a structured summary.

Agents:

1. QueryUnderstandingAgent (Sub-Agent)
   • Model: gemini-2.0-flash
   • Description: “Refines and clarifies the user’s research topic, breaking it down into specific searchable questions if necessary.”
   • Instruction: “Analyze the user’s research topic. If it’s broad, decompose it into 2-3 specific questions. If it’s already specific, confirm understanding. Output the specific question(s).”
   • Output: JSON object with a list of questions.
2. WebSearchAgent (Sub-Agent)
   • Model: gemini-2.0-flash (good for search integration)
   • Description: “Given specific research questions, uses Google Search to find relevant web pages and extracts key information snippets from them.”
   • Instruction: “For each input question, perform targeted Google searches. From the top 3-5 results for each, extract concise, relevant snippets of information. If a URL seems highly relevant, note it down for potential deeper content extraction. Compile all snippets per question.”
   • Tools: google_search
   • Output: JSON object mapping original questions to lists of information snippets and potentially promising URLs.
3. InformationSynthesizerAgent (Sub-Agent)
   • Model: gemini-2.5-flash-preview-05-20 (good for summarization and writing)
   • Description: “Takes a collection of research snippets and URLs, synthesizes the information, and writes a structured summary or report.”
   • Instruction: “You will receive research findings (text snippets, possibly full page content if load_web_page was used by a prior agent). Synthesize this information into a coherent, structured summary answering the original user topic. Ensure proper attribution if sources are clear. Structure with headings and bullet points.”
   • (Optional Tool): If WebSearchAgent only provides URLs, this agent might use FunctionTool(load_web_page).
   • Output: The final textual report.
4. MainResearchOrchestrator (Root Agent)
   • Model: gemini-2.0-flash (for good orchestration)
   • Description: “Manages the end-to-end research process for a user’s topic.”
   • Instruction:

   You are the main orchestrator for a research task.

   1. Receive the user’s research topic.
   2. Delegate to ‘QueryUnderstandingAgent’ to refine/clarify the topic into specific questions.
   3. Take the questions from ‘QueryUnderstandingAgent’ and delegate to ‘WebSearchAgent’ to gather information.
   4. Take the findings from ‘WebSearchAgent’ and delegate to ‘InformationSynthesizerAgent’ to compile the final report.
   5. Present the final report to the user. Manage the flow and data transfer between agents.
   • Sub-Agents: [QueryUnderstandingAgent, WebSearchAgent, InformationSynthesizerAgent]

This case study illustrates how breaking down a complex task (research) into specialized agent roles can lead to a more structured and potentially more effective system. The orchestrator manages the high-level flow, while sub-agents handle their expert tasks. Communication happens via the orchestrator transferring control and context (implicitly through session history/state, or explicitly by instructing agents to output data for the next agent).

State Management for Inter-Agent Communication

In MAS like the research assistant, session state (tool_context.state or callback_context.state) becomes crucial for passing information between agents. For example:

• QueryUnderstandingAgent could save its output (list of questions) to state['refined_questions'].
• MainResearchOrchestrator, in its next turn, reads state['refined_questions'] and uses it as input for WebSearchAgent.

Use clear, agreed-upon state keys.

What’s Next?

Designing a multi-agent architecture is the first step. Next, we’ll look at ADK’s specific shell agents (SequentialAgent, ParallelAgent, LoopAgent) that provide pre-built structures for common orchestration patterns, simplifying the implementation of some of the designs discussed here.
